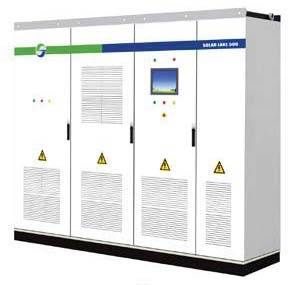

ONDULEUR, CONVERTISSEUR
Description : Nous pouvons fournir l’onduleur jusqu’à 500KW, produit avec certificat CE, tous les produits garantissent 5 ans,
tarif CIF 0.17 USD/W,
Technical date please see below table:
DC input
Max. DC input power[KWp] 560
Max. DC input volt.[V] 850
Max. DC input current[A] 1200
No.of MPPT 1
MPPT range[V] 450～820
No.of Strings 16
AC output
Rated AC output power[KW] 500
Rated output current[A] 1100
AC connection 3/PE,270V
Grid frequency[Hz] 50/60
Power factor 0.95lagging…0.95leading
THD ≤3%
Efficiency
Max. efficiency 98.3%
EU efficiency 98%
Protection
Ground fault protection
AC short circuit/overload protection
Grid monitoring
Leakage current protection
General Data
Dimension(W*H*D) [mm] 2800*2100*850
Weight[kg] 2000kg
Operating temperature range[℃] -25～ 50
Relative humidity 15%～95%
Altitude[m] ≤1000 without derating
Protection level IP20
Topology Transformerless
Night-time consumption[W] <100
Cooling Fan cooling
Noise level[dB] <70
Display Touch screen
Communication interface RS485/RS232
ONDULEUR, CONVERTISSEUR
Chine
