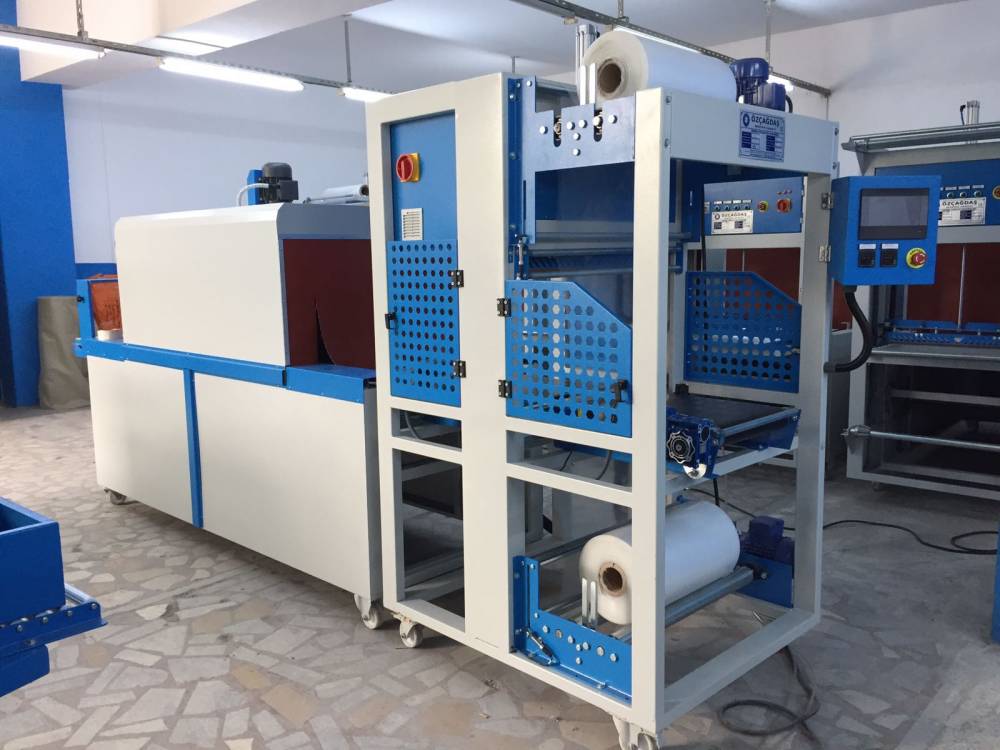

FULL-AUTOMATIK SHRINK MACHINE

Tunnel Width
700 mm. (550 mm. pack can pass through the tunnel)
Tunnel Height
500 mm. (300 mm. pack can pass through the tunnel)
Preparation Band Length (Width x Length)
600 x 600 mm.
Interband Length (Width x Length)
600 x 600 mm.
Tunnel Length
2000 mm
Output Tape Length (Width x Length)
650 x 1000 mm.
Sealing Unit Length
700 mm.
Band Heights
85 5cm.(87,5cm. Other Bands) Belt Thickness: 3 mm.
Total Machine Length
6000 mm.
Coil Opener
1 1 Nylon
The film opening unit automatically on the top and bottom with engine control
Cutting and sealing stage adjustable from the button
Speed Control (Min-Max, m/dak)
15 m/min. Adjustable
Working Pressure (Atü)
8 Bar
Electric Supply
380 V – 3 Faz 50 – 60 Hz.
Electric Power (Kw)
25 Kw
Sealing System
Teflon-Coated Hot Mouth
Heaters are in the side divisions of the tunnel
Oven (Tunnel) Temperature Setting
Programmable Digital Termostat Control
The Number and Diameter of Turbo Fan Inside The Oven
1 Fan - 40 ø
The Transport System Inside The Oven
10 Silicon Rods
Number of Cooling Fan
1 pcs.
Electrical Control Equipment
ENDA, LG or SIEMENS
Control System
Automation ENDA
Thermal Insulation
Stone Wool (IZOCAM)
Machine Protection
Yes
Emergencyl Stop Switch
Yes
Pneumatic System
Yes
PLC Touchscreen
Yes
Aluminium Cutting and Sealing Mouth
Yes
Easily Replaceable Resistance System
Yes
Pack Counter
Yes
Production Capacity
8 -10-12 Pack/min. (Changeable According to Product)
Thermostat-Controlled Tunnel Temperature
Yes
Adjustable Conveyor Speed
Yes
Pneumatic System: ÖZÇAĞDAŞ
