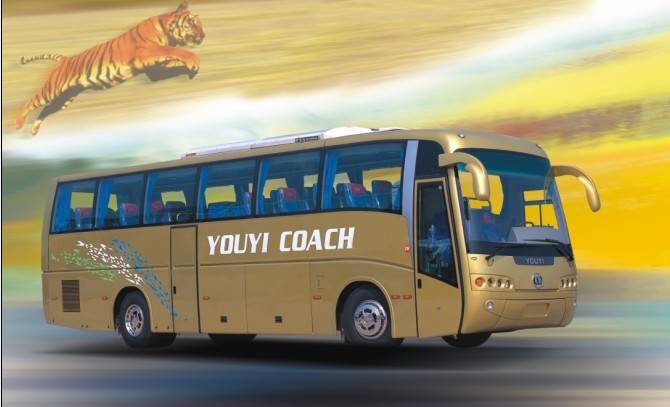

ZGT6121DH
Dimension (L*W*H)
11990mm*2500mm*3620mm
Wheel Base
6200mm
Top Speed
110km/h
Fuel Tank Capacity
200L
Fuel Consumption Per L
25 L/100Km
Seat Capacity
47 1 1
Engine
Model
CA6DL1-30 (Euro II)
Max. Power
220 kw/2300rpm (300HP)
Max. Torque
1100 N.m/1200-1400 rpm
Displacement
7.7L
Chassis
Model
CA6121DK8-2F
Clutch
Single disk, dry, operated far hydraulically.
Gearbox
Manual, six gear-full synchromesh
Rear Axle
single-reduction, hypoid gear,
Brake system
Pneumatic dual-circuit service brake, spring parking brake
Steering Gear
Integral power steering system
Tire
11R22.5
Suspension
Leaf spring optional air suspension
ABS with adjust arm
Yes
Body Equipment
Passenger Seat
Luxury soft seat
Passenger Door
air pressure two out-swing door, mechanical door lock,
Rear View Mirror
Manual rabbit ear shape
Other Equipments
2 units vent, sun curtain, side window curtain, inner rear view mirror, normal decoration, glue side window
